Accurately predicting the potential for propeller slip is critical for efficient vessel operation and optimal performance. Overestimating or underestimating this crucial factor can lead to significant discrepancies between anticipated speed and actual vessel velocity, resulting in wasted fuel, reduced operational efficiency, and potentially dangerous situations. Understanding the nuances of propeller slip and having the means to accurately calculate it is therefore paramount for mariners, naval architects, and anyone involved in the design, operation, or analysis of marine propulsion systems. This necessitates the utilization of sophisticated tools capable of handling the intricate interplay of hydrodynamic forces, hull characteristics, and propeller design parameters. Consequently, the development of robust and reliable propeller slip calculators has become indispensable for informed decision-making across various marine applications. These tools, when used correctly, empower users to optimize propeller selection, enhance fuel economy, and improve overall vessel performance, ultimately leading to significant cost savings and environmental benefits. Furthermore, the ability to accurately predict propeller slip facilitates the efficient design and maintenance of propulsion systems, minimizing downtime and maximizing operational effectiveness. The following discussion will delve into the intricacies of propeller slip calculation and explore the functionality and advantages of employing dedicated calculators to ensure precise and reliable results within the maritime industry.
Moreover, the complexity inherent in calculating propeller slip stems from the multitude of factors influencing its value. These factors are intricately intertwined, creating a challenge for simplified estimations. Firstly, the hull form itself plays a significant role; a streamlined hull will experience less resistance and therefore a lower slip percentage compared to a fuller-bodied vessel. Secondly, the propeller design, encompassing parameters such as pitch, diameter, and blade shape, significantly impacts slip. A propeller with a high pitch will theoretically generate higher thrust but can also result in increased slip if the water flow is insufficient to fully utilize the pitch. Similarly, the propeller’s rotational speed, dictated by engine RPM, is a critical variable; higher speeds generally correlate with increased slip, though this relationship isn’t always linear. Furthermore, environmental conditions, such as water density and currents, exert considerable influence. Denser water offers greater resistance, leading to lower slip, while currents can either increase or decrease the effective speed of the vessel, thus affecting the calculated slip. Finally, the vessel’s loading condition is crucial; a heavily laden ship will experience greater resistance and higher slip compared to a lightly loaded one. Therefore, accurate propeller slip calculation necessitates consideration of all these variables, highlighting the importance of sophisticated computational tools that can handle the intricate interplay of these numerous parameters to provide reliable results. In essence, a well-designed calculator can account for this complexity, offering a far more precise calculation than rudimentary estimations.
In conclusion, the effective use of a propeller slip calculator extends beyond simple number crunching; it represents a crucial step towards optimizing vessel performance and achieving sustainable maritime operations. By providing a robust platform for incorporating the numerous variables influencing propeller slip, these calculators facilitate informed decision-making regarding propeller selection, engine RPM optimization, and overall vessel design. This leads not only to improved fuel efficiency and reduced operational costs but also contributes significantly to minimizing the environmental impact of maritime activities. However, it is vital to remember that even the most sophisticated calculator is only as good as the input data provided. Therefore, accurate measurement of key parameters like vessel speed, propeller dimensions, and environmental conditions remains critical for achieving reliable results. Furthermore, understanding the underlying hydrodynamic principles driving propeller slip is essential for interpreting the calculator’s output and making informed judgments based on the calculated values. Ultimately, the integration of advanced calculation tools with a thorough understanding of fundamental principles empowers mariners and naval architects to achieve optimal propulsion efficiency and contributes to a safer and more environmentally responsible maritime industry. Therefore, continuous improvement and development of propeller slip calculators remain vital for the advancement of maritime technology and sustainable maritime practices.
Understanding Prop Slip: A Fundamental Concept
What is Prop Slip?
Imagine you’re trying to walk forward on a very slippery surface. You push off with your feet, expecting to move a certain distance, but you end up sliding less than you anticipated. Prop slip in boats is similar. It’s the difference between the theoretical distance a propeller *should* move a boat based on its design and actual RPM (revolutions per minute), and the real-world distance it actually moves the boat. This discrepancy isn’t a mechanical failure; it’s a natural consequence of the interaction between the propeller, the water, and the boat’s hull.
Factors Contributing to Prop Slip
Several factors contribute to propeller slip. One key factor is the propeller’s design itself. A propeller with a larger pitch (the distance the propeller would theoretically advance in one revolution if it were moving through a solid) will naturally experience more slip than one with a smaller pitch. This is because a higher-pitch propeller attempts to move a greater volume of water in each rotation. However, the water isn’t a solid; it slips and flows around the propeller blades, reducing the effective thrust. The shape of the propeller blades also plays a significant role. Efficient blade designs minimize slip by optimizing water flow and reducing turbulence.
The condition of the water itself significantly influences prop slip. Turbulent water, such as that found in rough seas or close to the shore, creates resistance and increases slip. Conversely, calm, clear water allows for more efficient propulsion and reduces slip. The boat’s hull design also matters. A hull with a poor hydrodynamic design will create more drag, thereby increasing slip. Similarly, the boat’s speed affects slip. At higher speeds, the propeller is working against more resistance from the water, leading to increased slip. Finally, even the boat’s weight and load can impact prop slip; heavier boats require more power and may show increased slip as a result.
Quantifying Prop Slip
Prop slip is usually expressed as a percentage. It’s calculated by comparing the theoretical distance the propeller *should* travel based on its pitch and RPM to the actual distance the boat travels. A higher percentage indicates more slip, while a lower percentage suggests more efficient propulsion. Understanding prop slip is crucial for optimizing boat performance, fuel efficiency, and choosing the right propeller for specific applications.
| Factor | Effect on Prop Slip |
|---|---|
| Propeller Pitch | Higher pitch generally leads to higher slip |
| Water Conditions | Turbulent water increases slip; calm water reduces slip |
| Hull Design | Poor hydrodynamic design increases slip |
| Boat Speed | Higher speed generally leads to higher slip |
| Boat Load | Heavier load can increase slip |
Factors Influencing Propeller Slip
1. [Subsection 1 Title - Example: Boat Hull Design]
The design of a boat’s hull significantly impacts propeller slip. A hull with a smooth, efficient shape will experience less slip than one with a rough or poorly designed underwater profile. Things like the hull’s length, beam (width), and deadrise (angle of the hull at the transom) all play a role. A longer, narrower hull often allows for a more efficient flow of water around the propeller, reducing slip. Conversely, a wider, shallower hull can create more turbulence, increasing slip. Furthermore, the presence of appendages like keels, rudders, and trim tabs can disrupt the water flow and affect propeller efficiency. Careful consideration of these elements during hull design is crucial for minimizing propeller slip and maximizing propulsion.
2. Propeller Characteristics and their Impact on Slip
The propeller itself is a major determinant of slip. Several key characteristics influence its performance and the degree of slip experienced. The diameter of the propeller is a fundamental factor; a larger diameter propeller generally moves more water, resulting in potentially less slip, but this isn’t always the case and depends on other factors. However, excessive diameter can lead to cavitation (the formation of vapor bubbles) which greatly reduces efficiency and increases slip.
The pitch of the propeller, which is the theoretical distance the propeller would advance in one revolution, is crucial. A propeller with a higher pitch intends to move the boat farther with each revolution, but if the boat cannot reach that theoretical distance due to factors like hull resistance or insufficient engine power, slip increases. Conversely, a low pitch will result in more revolutions per unit of distance travelled. The number of blades also matters; more blades generally lead to smoother operation and can reduce slip under certain conditions, but also introduce more drag, a tradeoff that needs careful consideration. The blade shape and design are also critical. A well-designed blade profile maximizes thrust while minimizing turbulence and cavitation, thereby decreasing slip.
Finally, the material the propeller is made from, while often overlooked, impacts efficiency and durability, influencing slip indirectly. A propeller that is damaged or poorly maintained will certainly experience increased slip due to uneven blade surfaces or reduced efficiency.
| Propeller Characteristic | Effect on Slip |
|---|---|
| Diameter | Generally decreases slip (unless cavitation occurs) |
| Pitch | Higher pitch can increase slip if insufficient power or resistance is present |
| Number of Blades | More blades can reduce slip, but also increase drag |
| Blade Shape | Efficient design minimizes turbulence and cavitation, reducing slip |
| Material & Condition | Damage or poor condition leads to increased slip |
3. [Subsection 3 Title - Example: Environmental Conditions]
Environmental factors significantly affect propeller slip. The density of the water, for instance, impacts propeller performance. Saltier water is denser than freshwater, offering more resistance and potentially reducing slip. Currents and waves also play a major role. A strong current opposing the boat’s movement will increase slip, while following seas might improve efficiency. Finally, the presence of vegetation or debris in the water can directly impact propeller performance and efficiency, leading to increased slip and potential damage.
Calculating Prop Slip: The Basic Formula
Understanding the Fundamentals of Prop Slip
Before diving into the calculations, let’s clarify what prop slip actually means. Prop slip is the difference between the theoretical distance a propeller *should* travel based on its pitch and the actual distance it travels in the water. This discrepancy arises because the water isn’t a perfectly solid medium; it slips and flows around the propeller blades, reducing the effective thrust. Think of it like trying to walk on a very slippery surface – you take a step, but you don’t cover the full distance your stride intended. The propeller experiences a similar effect, resulting in a shorter actual distance traveled than what’s predicted by its pitch.
Several factors contribute to prop slip. The most significant are the boat’s hull design, the propeller’s shape and size (including its pitch), the boat’s speed, and the water conditions (currents, waves, and the presence of obstacles). A poorly designed hull can create turbulence and drag, increasing slip. Similarly, a propeller that’s too small or improperly pitched for the boat will exhibit higher slip. Even the water’s viscosity and temperature play a role. Understanding these interacting factors is crucial for interpreting prop slip calculations and for making informed decisions about propeller selection and tuning.
The Basic Prop Slip Calculation
The core formula for calculating prop slip is remarkably simple, yet it provides valuable insights into your propeller’s efficiency. The basic formula is expressed as:
Prop Slip (%) = [(Theoretical Distance - Actual Distance) / Theoretical Distance] x 100
Where:
- Theoretical Distance: This is calculated by multiplying the propeller’s pitch (in inches or centimeters) by the number of revolutions the propeller makes in a given time period (usually measured in minutes). The unit of measurement should be consistent between pitch and distance (inches or centimeters).
- Actual Distance: This is the true distance the boat travels in the same time period as the propeller’s revolutions. It’s typically measured using a GPS device or by carefully marking a course and timing the boat’s passage.
It’s important to note that this calculation provides a percentage representing the *amount* of slip. A higher percentage indicates a greater discrepancy between theoretical and actual distance, representing lower propeller efficiency. Lower percentages indicate a more efficient propeller. Understanding the context of the percentage is essential; a 15% slip might be perfectly acceptable for a certain boat and application, while the same slip percentage might be problematic for another.
Factors Affecting Prop Slip and Interpreting Results
While the basic formula is straightforward, accurately interpreting the results requires considering several influential factors. Let’s examine some of them in detail:
Hull Design and Condition
A poorly designed or maintained hull significantly impacts prop slip. A hull with excessive drag from barnacles, a rough surface, or poor hydrodynamic design will increase the slip percentage because it resists the propeller’s thrust. Regular hull cleaning and maintenance are essential for minimizing this effect.
Propeller Condition and Selection
The propeller’s condition is paramount. Damage, such as bent or chipped blades, directly affects its efficiency, increasing slip. Furthermore, the propeller’s pitch must be appropriately chosen for the boat’s size, weight, and intended use. An incorrectly pitched propeller will inevitably result in higher slip. Consider consulting a marine professional for accurate propeller selection.
Water Conditions
The surrounding water’s characteristics dramatically impact prop slip. Strong currents, heavy waves, and even the water’s temperature and salinity can all affect the propeller’s performance. Testing and measurement should ideally take place in calm water for more reliable data. Accounting for environmental factors provides more meaningful prop slip calculations and interpretations.
Measuring Techniques
Accurate measurements of both theoretical and actual distances are fundamental to obtaining meaningful results. Inaccurate measurements directly affect the final slip percentage. Using a GPS device that can accurately log speed and distance over time is recommended. For actual distance, multiple runs should be conducted to average out short-term variations.
| Factor | Effect on Prop Slip | Mitigation Strategy |
|---|---|---|
| Hull Condition | Increased slip due to drag | Regular cleaning and maintenance |
| Propeller Condition | Increased slip due to damage or incorrect pitch | Regular inspection and professional selection |
| Water Conditions | Variable slip due to currents and waves | Testing in calm conditions |
| Measurement Accuracy | Inaccurate slip percentage | Use precise GPS and multiple test runs |
Data Requirements for Accurate Prop Slip Calculation
Understanding Prop Slip
Before diving into the specifics of data requirements, let’s briefly clarify what prop slip is. Prop slip is the difference between the theoretical distance a propeller should travel based on its pitch and rotational speed, and the actual distance it travels through the water. This difference isn’t due to malfunctioning equipment, but rather the complex interaction between the propeller, the water, and the boat’s hull. Several factors influence the amount of slip, making accurate calculation a bit of a challenge.
Essential Data Points: A Quick Overview
To accurately calculate prop slip, you’ll need a few key pieces of information. These data points form the foundation of your calculation and significantly impact its precision. Missing or inaccurate data will lead to unreliable results. We’ll examine each element in detail in the following sections. Generally, you’ll need data related to the propeller’s characteristics, the boat’s speed, and the engine’s performance.
Propeller Specifications: The Heart of the Matter
The propeller itself holds vital information. The most crucial specification is the **propeller pitch**. This represents the theoretical distance the propeller would advance in one complete revolution if it were operating in a solid medium (like a screw in wood). You’ll also need to know the **diameter of the propeller**, which affects the volume of water moved per revolution. Finally, the **number of blades** can influence efficiency and, therefore, slip, though it’s often a less dominant factor.
Engine and Boat Performance Data: The Real-World Factors
RPM Measurement: A Cornerstone of Accuracy
Precise measurement of the engine’s revolutions per minute (RPM) is absolutely critical. Inaccurate RPM readings directly translate to errors in your prop slip calculation. The RPM should be recorded while the boat is operating at a consistent speed in open water, preferably under relatively calm conditions. Using a reliable tachometer is essential. Avoid taking readings during acceleration or deceleration, as these periods introduce variability. The tachometer itself should be regularly calibrated to ensure accuracy. For boats equipped with sophisticated onboard systems, these readings may be readily accessible through digital displays. However, in some cases, you might need to use a separate hand-held tachometer, ensuring proper connection to the engine’s electrical system for a valid reading. Remember, even small inaccuracies in the RPM can significantly skew the final prop slip percentage.
GPS Speed Measurement: Ground Truth
Accurate speed measurement is as critical as precise RPM data. While some may use a knotmeter, relying on a GPS-based speed log is generally preferred for greater accuracy. GPS devices provide a direct measure of the boat’s speed over ground, eliminating the potential inaccuracies associated with traditional knotmeters that can be affected by water currents. Ensuring a clear GPS signal with minimal interference is crucial. GPS speed should be recorded simultaneously with the RPM reading while the boat is running at a constant speed. This concurrent data ensures a reliable comparison between theoretical and actual distances covered.
Other Factors Affecting Accuracy
While RPM and GPS speed are paramount, several other factors can subtly influence your prop slip calculation. These include water conditions (current, waves, etc.), hull fouling (barnacles on the hull increasing drag), and propeller condition (bent blades, damage). While you can’t perfectly account for each, acknowledging their influence helps interpret the results and understand variations in prop slip under different conditions. For example, significantly higher slip may indicate a need for propeller maintenance or cleaning.
Presenting the Data in a Table
| Data Point | Description | Units | Method of Measurement |
|---|---|---|---|
| Propeller Pitch | Theoretical distance advanced per revolution | Inches or Centimeters | Manufacturer’s specifications or direct measurement |
| Propeller Diameter | Diameter of the propeller | Inches or Centimeters | Direct Measurement |
| Engine RPM | Revolutions per minute of the engine | RPM | Tachometer |
| Boat Speed | Speed of the boat over ground | Knots or mph | GPS Speed Log |
Advanced Prop Slip Calculation Methods
5. Incorporating Wake Fraction and Hull Efficiency
While basic prop slip calculations provide a useful estimate, they often fall short of reality due to the complexities of the interaction between propeller, hull, and water. To achieve greater accuracy, we need to account for two crucial factors: wake fraction and hull efficiency. These factors significantly influence the effective speed of the propeller through the water and, consequently, the true slip.
Understanding Wake Fraction
The wake fraction represents the reduction in water speed behind the hull, caused by the hull’s displacement and resistance. As the boat moves forward, it pushes water aside, creating an area of lower water velocity immediately behind it. The propeller operates within this lower-velocity wake, meaning it experiences a lower inflow speed than the boat’s actual speed through the water. A higher wake fraction indicates a more significant reduction in water speed at the propeller. This can be determined through various means, including computational fluid dynamics (CFD) simulations, model testing in towing tanks, or empirical formulas based on hull form and speed. Precise determination can be challenging and often requires specialized expertise.
The Role of Hull Efficiency
Hull efficiency refers to the effectiveness of the hull in converting engine power into thrust. Not all the power generated by the engine is effectively used to propel the boat forward; some is lost to friction, wave-making resistance, and other forms of energy dissipation. Hull efficiency represents the proportion of engine power that contributes to the boat’s forward motion. A less efficient hull design will result in a greater loss of power, reducing the propulsive force and thus influencing the slip calculation. This efficiency varies depending on factors such as hull shape, length, and surface condition. Accurate estimations often depend on experience and advanced hull performance analysis techniques.
Integrating Wake Fraction and Hull Efficiency into Prop Slip Calculations
By incorporating both wake fraction (w) and hull efficiency (ηh) into the calculation, we arrive at a more nuanced understanding of prop slip. The effective speed of the propeller (Ve) is calculated as Ve = Vb(1-w), where Vb is the boat’s speed. This effective speed then replaces the boat speed in the standard prop slip formula. The hull efficiency influences the relationship between engine power, thrust, and the effective speed of the propeller, leading to further refinement of the slip calculation. The precise formula can be complex and often requires iterative solutions.
Example: Using Wake Fraction and Hull Efficiency
Let’s consider a scenario: a boat with a speed of 10 knots (Vb) has a wake fraction of 0.2 (w = 0.2) and a hull efficiency of 0.6 (ηh = 0.6). The effective propeller speed (Ve) would be: Ve = 10 knots * (1 - 0.2) = 8 knots. The slip calculation would then use this effective speed, factoring in the hull’s efficiency to determine the final prop slip.
| Parameter | Symbol | Typical Range | Notes |
|---|---|---|---|
| Boat Speed | Vb | Variable | Measured directly |
| Wake Fraction | w | 0.1 - 0.3 | Highly variable depending on hull form and speed |
| Hull Efficiency | ηh | 0.4 - 0.8 | Dependent on hull design and condition |
| Effective Propeller Speed | Ve | Calculated (Vb(1-w)) | Crucial for accurate slip calculation |
Interpreting Prop Slip Results: Performance Analysis
Understanding Prop Slip Percentage
Before diving into performance analysis, let’s solidify our understanding of prop slip. Prop slip is essentially the difference between the theoretical distance a propeller *should* travel based on its pitch and RPM, and the actual distance it travels. A higher slip percentage indicates a larger discrepancy, suggesting inefficiencies in the propeller’s thrust generation. Conversely, a lower percentage implies better efficiency, though excessively low values might indicate other potential issues (discussed later). It’s crucial to remember that some level of prop slip is perfectly normal; a perfectly efficient propeller (0% slip) is a theoretical ideal.
Factors Influencing Prop Slip
Several factors can impact prop slip, making the interpretation of results more nuanced. These include boat hull design (planing hull vs. displacement hull), the propeller’s design (pitch, diameter, number of blades), the engine’s power output, water conditions (currents, weeds, waves), and even the boat’s loading. A poorly designed or damaged propeller will consistently exhibit higher slip percentages.
Analyzing Speed and RPM Data
Accurate speed and RPM data are fundamental to calculating prop slip. GPS speed provides the most reliable measure of actual boat speed. RPM readings should be taken from a reliable tachometer. Inconsistent or inaccurate readings will lead to misleading prop slip calculations. It’s important to gather data under consistent conditions to ensure a reliable comparison.
Typical Prop Slip Ranges
While the “ideal” prop slip percentage is debated and varies across boat types, a general guideline can be helpful. A “healthy” range is often cited as 10-20% for many boats, but this can depend significantly on the factors discussed earlier. Values considerably outside this range necessitate a closer examination of potential problems. Values exceeding 30% usually point to significant inefficiencies, and values below 5% may indicate over-propped conditions, propeller damage, or inaccurate measurements.
Identifying Potential Problems Based on High Prop Slip
High prop slip often signals underlying issues. A worn or damaged propeller, for example, will likely demonstrate higher than average slip due to reduced efficiency. Incorrect propeller selection (e.g., a pitch that’s too high or too low for the engine’s power) is another common culprit. Heavy fouling on the propeller (such as barnacles or seaweed) can also increase slip significantly. Finally, a poorly maintained engine producing less power than its rated output can also result in higher slip.
Interpreting Prop Slip Results: Detailed Case Studies
Let’s analyze prop slip results through detailed examples. Consider three scenarios. First, a boat consistently shows 35% prop slip. This is significantly high and indicates potential issues such as propeller damage, fouling, or an incorrect propeller selection. A thorough inspection is crucial here. Second, a boat with 15% slip is within a generally acceptable range, suggesting the propeller is reasonably efficient for its application. Lastly, a boat displaying 3% slip may indicate an over-propped condition; the engine is struggling to turn the propeller at its intended RPM, which could lead to engine strain. To illustrate, we can present some comparative data:
| Scenario | Prop Slip (%) | Possible Causes | Recommended Action |
|---|---|---|---|
| Scenario 1 | 35% | Propeller damage, fouling, incorrect pitch | Inspect propeller, clean or replace as needed |
| Scenario 2 | 15% | Within acceptable range | No immediate action needed |
| Scenario 3 | 3% | Over-propped condition | Consider a lower pitch propeller |
Analyzing prop slip requires a holistic approach, considering the interplay of various factors. By systematically investigating the boat’s specifications, operating conditions, and the propeller’s performance, boat owners and technicians can make informed decisions about maintenance, repairs, or propeller adjustments to optimize performance and efficiency.
Optimizing Propeller Design and Selection
Accurate propeller slip calculations are crucial during the design phase of a vessel. Understanding the expected slip allows naval architects to select a propeller with the appropriate diameter and pitch to achieve the desired vessel speed at a given engine RPM. A propeller that’s too large for a given engine might result in excessive slip and inefficient propulsion, while one that’s too small might overload the engine and risk damage. Prop slip calculations help engineers avoid these pitfalls, ensuring the chosen propeller is optimally matched to the vessel’s hull form and powerplant.
Furthermore, the design process often involves iterative calculations. Initial design parameters are refined based on the results of slip calculations, leading to a more efficient and effective propulsion system. This iterative approach allows for optimization of factors such as blade shape, number of blades, and overall propeller geometry, all contributing to enhanced performance and fuel efficiency.
Assessing Propeller Performance and Identifying Issues
Once a vessel is in operation, prop slip calculations provide valuable insights into the propeller’s performance. By comparing calculated slip with expected values based on design parameters, engineers can identify potential problems. Unexpectedly high slip might indicate fouling on the propeller, damage to the blades, or even issues with the engine’s power output. Conversely, unusually low slip might suggest an issue with the hull’s hydrodynamic characteristics, potentially indicating the need for hull cleaning or repairs.
Regular monitoring of propeller slip, alongside other performance indicators, allows for proactive maintenance and prevents the development of more serious, and potentially costly, problems. Early detection of issues allows for timely intervention, minimizing downtime and maximizing the operational lifespan of the propulsion system.
Predicting Vessel Speed and Fuel Consumption
Accurate prediction of vessel speed is paramount for efficient voyage planning and scheduling. Propeller slip calculations, incorporated into more comprehensive hydrodynamic models, provide a reliable method for estimating the vessel’s speed under various operating conditions (e.g., different engine speeds, varying sea states). This enables better route optimization and fuel consumption estimations.
Accurate fuel consumption predictions are directly linked to operating costs. Understanding the relationship between propeller slip, engine speed, and fuel consumption allows operators to optimize operational strategies, reducing fuel expenses and environmental impact.
Improving Fuel Efficiency and Reducing Emissions
Reducing fuel consumption is a major priority in the marine industry, driven by both economic and environmental concerns. Prop slip calculations play a crucial role in this endeavor. By identifying areas for improvement in propeller performance (e.g., through hull cleaning, propeller polishing, or even propeller modifications), ship operators can significantly reduce fuel consumption and associated greenhouse gas emissions. This contributes towards a more sustainable maritime sector and compliance with increasingly stringent environmental regulations.
Moreover, data from slip calculations can inform decisions about hull cleaning schedules and maintenance strategies, further optimizing fuel efficiency and reducing the environmental footprint of shipping operations.
Troubleshooting Propulsion System Problems
Unexpected changes in propeller slip can signal underlying problems within the propulsion system. For instance, a sudden increase in slip might indicate cavitation issues, bearing problems, or misalignment within the drivetrain. By analyzing prop slip data in conjunction with other diagnostic information, engineers can pinpoint the source of the malfunction and recommend appropriate corrective actions.
This proactive approach minimizes downtime, prevents further damage, and ensures the continued safe and reliable operation of the vessel.
Enhancing Vessel Maneuverability and Control
Propeller slip influences a vessel’s maneuverability and controllability, especially at low speeds. Understanding how slip varies with different rudder angles and engine settings is essential for optimizing the vessel’s handling characteristics. Calculations can be used to model the vessel’s response to various control inputs, which is particularly critical in confined waterways or during docking maneuvers.
Accurate modeling of propeller slip under diverse operating conditions allows for the design and implementation of more effective steering systems and control algorithms, enhancing safety and operational efficiency.
Analyzing the Influence of Environmental Factors
Environmental factors significantly impact propeller performance and, consequently, slip. Water density, currents, and waves all influence the effective thrust produced by the propeller. Precise calculations must account for these factors to achieve realistic predictions of vessel speed and fuel consumption. Failing to account for the influence of environmental factors can lead to inaccurate assessments of propeller performance and potentially result in operational inefficiencies and safety concerns.
Sophisticated prop slip calculators often incorporate environmental models and real-time data inputs (e.g., from weather sensors) to provide more accurate predictions under different sea states and environmental conditions. For example, higher water density, such as in colder waters, can alter the propeller’s performance, leading to changes in slip that need to be accounted for. Likewise, strong currents can significantly increase the effective slip, while following seas can reduce it. Understanding these dynamic relationships between environmental factors and propeller performance is essential for optimal vessel operation.
The following table provides a simplified summary of how various environmental factors can affect propeller slip:
| Environmental Factor | Effect on Propeller Slip | Explanation |
|---|---|---|
| Water Density | Increased density leads to slightly decreased slip. | Denser water provides more resistance, improving thrust. |
| Currents (Head Current) | Increased slip. | Current opposes propeller thrust, requiring higher RPM for same speed. |
| Currents (Following Current) | Decreased slip. | Current assists propeller thrust, requiring lower RPM for same speed. |
| Waves (Head Seas) | Increased slip. | Waves increase resistance, reducing effective thrust. |
| Waves (Following Seas) | Decreased slip. | Waves assist in propulsion, reducing the work required by the propeller. |
Troubleshooting Discrepancies in Prop Slip Calculations
Understanding Potential Sources of Error
Calculating propeller slip is a crucial step in understanding boat performance. However, discrepancies between calculated slip and expected values are common. These discrepancies often stem from inaccuracies in the input data used in the calculation. The more precise your measurements, the better your results. Let’s explore the common culprits.
Inaccurate Speed Measurement
GPS speed readings, often used for boat speed (Vs), can be affected by GPS signal strength and multipath interference, leading to inaccurate measurements. Similarly, using a traditional log can introduce errors due to factors like fouling on the log’s housing or improper installation.
Incorrect Propeller Pitch
The propeller pitch (P) is a critical input. An incorrectly measured or stated pitch can significantly skew the results. Remember that pitch is usually measured at the mean diameter of the propeller, and slight manufacturing variations can exist. Always double-check your propeller’s specifications from a reliable source.
Inconsistent RPM Measurement
The engine’s revolutions per minute (RPM) (N) must be measured accurately. Inconsistent RPM readings, perhaps due to fluctuating engine load or inaccurate tachometer calibration, will directly impact your slip calculation. Multiple RPM readings taken over a consistent period provide better averaging and improved accuracy.
Environmental Factors
Environmental factors such as strong currents, significant waves, or even changes in water density can significantly affect boat speed and thus, the calculated slip. These factors introduce external forces that are not accounted for in the basic slip calculation. Optimal conditions for testing would be calm waters with minimal current.
Propeller Condition and Fouling
A damaged or fouled propeller will not perform as expected, leading to higher than expected slip. Barnacles, seaweed, or other debris adhering to the propeller blades increase drag and reduce propulsive efficiency. Regular propeller cleaning and maintenance are essential for accurate slip calculations.
Calibration and Maintenance of Instruments
The accuracy of your slip calculation is entirely dependent on the accuracy of the input data. This is where instrument calibration and maintenance play a critical role. Regularly calibrate your GPS, tachometer, and any other instruments involved in data acquisition. A well-maintained system minimizes errors originating from faulty or imprecise equipment. Ensure all instruments are properly installed and function as intended. Consider periodic professional calibration to guarantee accuracy. A seemingly small error in measurement, say 0.5 knots in boat speed, can dramatically affect your final slip calculation, especially at lower speeds. This emphasizes the importance of precise instruments and meticulous attention to detail. Consider the impact of water temperature and air pressure on instrument performance, too. These factors can affect GPS accuracy and RPM readings, although they are often considered negligible unless operating under highly unusual conditions. Systematic approaches, such as conducting multiple tests under similar conditions, and comparing the results, provide opportunities to identify anomalous readings that might stem from instrument malfunctions or other unexpected interferences.
Analyzing and Interpreting Results
Once you’ve gathered your data and performed your calculations, carefully review the results. Look for any outliers or inconsistencies. Compare your slip percentage to expected values for your boat type and propeller. If you are finding consistently high or low slip percentages, despite double-checking your data, revisit the sources of error previously discussed. Consider documenting your methods and results systematically. This detailed record will help you pinpoint the source of discrepancies. Sometimes, consulting with a marine professional or experienced boat mechanic can provide additional insights and help identify hidden issues that might be affecting your propeller’s performance.
Presentation of Results
Presenting your results clearly and concisely is essential. A well-structured table summarizing your measurements and calculations enhances readability and facilitates analysis. Consider including a column for each measurement (boat speed, RPM, propeller pitch) and a column for the calculated slip. Include units (e.g., knots, RPM, inches) and significant digits to reflect the accuracy of your measurements. A sample table illustrating this is shown below:
| Test Run | Boat Speed (Vs - knots) | RPM (N) | Propeller Pitch (P - inches) | Calculated Slip (%) |
|---|---|---|---|---|
| 1 | 6.2 | 2800 | 13 | 15.3 |
| 2 | 6.5 | 2850 | 13 | 12.9 |
| 3 | 6.3 | 2820 | 13 | 14.1 |
By carefully considering these points, you can significantly improve the accuracy of your prop slip calculations and gain a deeper understanding of your boat’s performance.
Utilizing Prop Slip Calculators: Software and Online Tools
Understanding the Importance of Accurate Prop Slip Calculations
Before diving into the specifics of software and online tools, let’s reiterate why calculating propeller slip is crucial. Propeller slip, the difference between theoretical and actual boat speed, provides valuable insights into your boat’s performance. High slip indicates potential problems like inefficient propeller design, excessive hull drag, or incorrect propeller pitch. Low slip, conversely, might suggest an overpowered engine or an improperly matched propeller. Understanding slip allows for informed decisions about propeller selection, engine tuning, and overall boat optimization. Accurate calculations are essential for maximizing fuel efficiency and achieving optimal performance.
Dedicated Prop Slip Calculation Software
Several software packages are dedicated to detailed marine calculations, including propeller slip. These programs often go beyond simple slip calculations, incorporating factors like hull shape, engine characteristics, and water conditions to provide a comprehensive performance analysis. They often include features like graphical representations of results, allowing for easier understanding and comparison across different scenarios. The cost of these programs varies, but the investment can be worthwhile for serious boaters and marine professionals who require precise and detailed analysis.

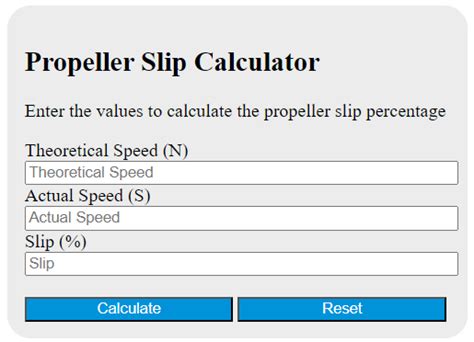

Online Prop Slip Calculators
Numerous free online prop slip calculators offer a convenient and accessible alternative to dedicated software. These tools typically require basic input parameters, such as propeller pitch, engine RPM, boat speed, and gear ratio. While they may not offer the same depth of analysis as dedicated software, they provide a quick and easy way to estimate propeller slip. The simplicity of use makes them ideal for a quick check or for boaters who don’t need highly detailed performance data.
Spreadsheet-Based Calculations
For those comfortable with spreadsheets (like Microsoft Excel or Google Sheets), creating a custom prop slip calculator is entirely feasible. This method provides flexibility and allows for customization based on specific needs. You can incorporate additional factors or create more sophisticated calculations tailored to your boat’s characteristics. However, building a reliable spreadsheet calculator requires an understanding of the relevant formulas and careful attention to detail.
Factors Affecting Prop Slip Calculation Accuracy
The accuracy of any prop slip calculation depends heavily on the accuracy of the input data. Inaccurate measurements of boat speed, engine RPM, or propeller pitch will directly affect the calculated slip percentage. Furthermore, environmental conditions like current, wind, and water temperature can significantly influence boat performance and therefore affect the accuracy of the calculation. It’s crucial to use calibrated instruments and to take measurements under consistent and controlled conditions whenever possible.
Interpreting Prop Slip Results
Understanding what the calculated slip percentage means is just as important as the calculation itself. A typical range of propeller slip is between 10% and 20%. Values outside this range might suggest problems requiring attention. High slip may indicate the need for a different propeller pitch, while low slip may point to an overpowered engine or other issues. Remember that the acceptable slip range might vary depending on the type of boat and its intended use.
Choosing the Right Tool for Your Needs
Selecting the appropriate prop slip calculator depends on your level of expertise, the complexity of your analysis needs, and your budget. For quick estimations, an online calculator might suffice. For more in-depth analysis, dedicated software or a custom spreadsheet might be preferable. Consider the trade-offs between convenience, accuracy, and cost when making your choice.
Advanced Features in Prop Slip Calculation Software and Online Tools (Expanded)
While basic prop slip calculators provide a simple percentage, advanced tools offer a much richer analytical experience. Many sophisticated software packages incorporate features like GPS integration for more precise speed measurement, eliminating the margin of error associated with traditional methods. Some even model the effects of varying water densities, allowing for more accurate calculations across different locations and seasons. Moreover, advanced tools often include features to simulate the effects of different propeller designs and pitches, enabling virtual testing before making any costly modifications. These simulation capabilities can save time and resources by predicting the performance improvements (or detriments) of different propeller choices. Consider, for example, software that might analyze the effects of changing propeller diameter or cup design on slip percentage and overall efficiency. This predictive capability is invaluable for optimizing boat performance and maximizing fuel economy.
Example of Advanced Features
Here’s a table summarizing some advanced features found in more comprehensive prop slip calculators:
| Feature | Description | Benefit |
|---|---|---|
| GPS Integration | Directly integrates with GPS data for highly accurate speed measurements. | Eliminates manual speed measurement errors. |
| Water Density Adjustment | Allows for adjustments based on water temperature and salinity. | Improves accuracy across various conditions. |
| Propeller Design Simulation | Models the effect of different propeller designs (pitch, diameter, cup design) on performance. | Allows for virtual testing and optimization before physical changes. |
| Hull Drag Calculations | Incorporates hull shape and size into calculations for a more comprehensive analysis. | Provides a more accurate assessment of overall boat performance. |
Troubleshooting Common Issues with Prop Slip Calculations
Sometimes, even with careful measurements, calculated slip values might seem unusually high or low. Common causes include inaccurate speed measurements (e.g., due to current or wind), incorrect input values for propeller pitch or engine RPM, or even unforeseen issues with the propeller itself (e.g., damage or fouling). Review your input data meticulously. If possible, repeat measurements to confirm accuracy. Consider consulting a marine professional for assistance if discrepancies persist after thorough self-checking.
Prop Slip Calculator: A Critical Perspective
Prop slip calculators, while offering a convenient means of estimating propeller slip, should be approached with a degree of caution. Their accuracy is intrinsically limited by the inherent simplifications made in the underlying models. These models often rely on idealized conditions and may not adequately account for real-world complexities such as varying water density, hull fouling, or irregular propeller geometry. Therefore, the results obtained from such calculators should be considered estimates rather than precise measurements. They serve as a useful tool for preliminary analysis and rough estimations, but should not substitute for empirical data acquired through actual performance testing.
The usefulness of a prop slip calculator is heavily dependent on the accuracy of the input parameters. Inaccurate input data will inevitably lead to inaccurate predictions. Factors like boat speed, engine RPM, and propeller pitch must be precisely measured, and even slight errors in these measurements can significantly affect the calculated slip percentage. Consequently, the reliability of any calculations hinges on the quality of data provided.
Furthermore, various prop slip calculator designs utilize different algorithms and may produce varying results for the same input data. It is essential to understand the methodology used by a specific calculator to assess its suitability for a particular application. The lack of standardization among these tools underscores the need for critical evaluation of the output. Ultimately, while prop slip calculators can aid in understanding propeller performance, they should be used judiciously and their limitations fully acknowledged.
People Also Ask About Prop Slip Calculators
What is propeller slip?
Understanding Propeller Slip
Propeller slip represents the difference between the theoretical distance a propeller should travel in one revolution (based on its pitch) and the actual distance it travels through the water. This difference is expressed as a percentage. Several factors, including hull resistance, water conditions, and propeller design, contribute to propeller slip. It is a normal phenomenon, and a certain amount of slip is expected.
How accurate are prop slip calculators?
Accuracy of Prop Slip Calculators
The accuracy of prop slip calculators varies greatly depending on the model used, the accuracy of the input data, and the specific conditions under which the calculations are performed. While they can provide a reasonable estimate, they should not be considered a precise measurement. Significant deviations from the actual propeller slip are possible, especially in challenging or atypical operating environments. It’s crucial to remember that these tools are estimators, not precise instruments.
What factors affect propeller slip?
Factors Influencing Propeller Slip
Numerous factors can affect propeller slip. These include, but are not limited to: water density (salinity and temperature), hull design and condition (fouling can significantly increase slip), propeller design (pitch and diameter), engine RPM, boat speed, and even the angle of attack of the propeller relative to the water flow. A comprehensive understanding of these factors is essential for interpreting the results from a prop slip calculator.
Can I use a prop slip calculator to optimize my propeller?
Using Prop Slip Calculators for Propeller Optimization
While a prop slip calculator can be a helpful tool in understanding your current propeller’s performance, it should not be the sole basis for propeller optimization decisions. Accurate optimization requires more than just a slip percentage; it demands a holistic analysis of engine performance, hull characteristics, and desired speed. Professional advice from a marine mechanic or propeller expert is recommended for significant changes to your propulsion system.
